滾珠滑塊

R162332220 力士樂滑塊

品　　牌：博世力士樂

產品規格：

R162331420圖紙

A	70
A₁	35
A₂	34
A₃	18.0
B	139.0
B₁	105.5
E₁	50
E₂	72
E₈	58.00
E₉	17.35
H	48
H₁	40.40
H₂¹⁾	32.15
H₂²⁾	31.85
K₁	23.75
K₂	25.25
K₃	6.90
K₄	6.90
N₃	13.0
N₆^±0.5	20.5
S₂	M8
S₅	9.0
S₉	M3*5
T	80
V₁	8.0
重量	1.70
額定載荷C³⁾	55 600
額定載荷 C₀³⁾	81 000
額定轉矩 M_t³⁾	1 200
額定轉矩 M_to³⁾	1 740
額定轉矩 M_L³⁾	830
額定轉矩 M_L0³⁾	1 215

1)尺寸H2帶防護帶
2)尺寸H2不帶防護帶
3)不帶滾珠鏈的滾珠滑塊的額定載荷和轉矩。
額定載荷和額定動轉矩是以100，000米行程為基礎確定的(根據ISO 14728-1)，但實際中經常是以50，000米行程為基礎。
在此情況下，表格中的C、Mt、和ML的值乘以1.26。

預緊等級：

精度等級：

021-57893800工作時間：周一至周五 9:00-18:00

產品介紹
技術參數
產品圖片

R162332220(2).jpg"

,35,C2（預緊8%C）,P,"

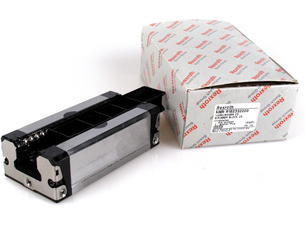

R162332220 力士樂滑塊是鋼制標準滾珠滑塊，窄型、長、標準*，帶標準密封，不帶滾珠鏈。

上海準密專業供應rexroth-star力士樂導軌，滑塊R1623-

規格：15、20、25、30、35、55、65

精度：N、P、H

部分部件號：

N R162319420 ,REXROTH/STAR滾珠滑塊R162311420,REXROTH/STAR滾珠滑塊 - -

20 ,

P - R162381220,REXROTH/STAR滾珠滑塊 R162382220,REXROTH/STAR滾珠滑塊 R162383220 ,REXROTH/STAR滾珠滑塊

H R162389320 ,REXROTH/STAR滾珠滑塊R162381320,REXROTH/STAR滾珠滑塊 R162382320, REXROTH/STAR滾珠滑塊-

N R162389420,REXROTH/STAR滾珠滑塊 R162381420,REXROTH/STAR滾珠滑塊 R162382420,REXROTH/STAR滾珠滑塊 -

P - R162321220 ,REXROTH/STAR滾珠滑塊R162322220,REXROTH/STAR滾珠滑塊 R162323220 ,REXROTH/STAR滾珠滑塊

H R162329320,REXROTH/STAR滾珠滑塊 R162321320,REXROTH/STAR滾珠滑塊 R162322320,REXROTH/STAR滾珠滑塊 -

N R162329420,REXROTH/STAR滾珠滑塊 R162321420,REXROTH/STAR滾珠滑塊 R162322420,REXROTH/STAR滾珠滑塊 -

P - R162371220 ,REXROTH/STAR滾珠滑塊R162372220,REXROTH/STAR滾珠滑塊 R162373220 ,REXROTH/STAR滾珠滑塊

H R162379320 ,REXROTH/STAR滾珠滑塊R162371320 ,REXROTH/STAR滾珠滑塊R162372320 ,REXROTH/STAR滾珠滑塊-

N R162379420 ,REXROTH/STAR滾珠滑塊R162371420,REXROTH/STAR滾珠滑塊 R162372420 ,REXROTH/STAR滾珠滑塊-

P - R162331220,REXROTH/STAR滾珠滑塊 R162332220,REXROTH/STAR滾珠滑塊 R162333220 ,REXROTH/STAR滾珠滑塊

H R162339320 ,REXROTH/STAR滾珠滑塊R162331320 ,REXROTH/STAR滾珠滑塊R162332320 ,REXROTH/STAR滾珠滑塊-

N R162339420,REXROTH/STAR滾珠滑塊 R162331420 ,REXROTH/STAR滾珠滑塊R162332420,REXROTH/STAR滾珠滑塊 -

45 *

P - R162341220,REXROTH/STAR滾珠滑塊 R162342220,REXROTH/STAR滾珠滑塊 R162343220,REXROTH/STAR滾珠滑塊

H R162349320,REXROTH/STAR滾珠滑塊 R162341320,REXROTH/STAR滾珠滑塊 R162342320,REXROTH/STAR滾珠滑塊 -

N R162349420,REXROTH/STAR滾珠滑塊 R162341420 ,REXROTH/STAR滾珠滑塊R162342420,REXROTH/STAR滾珠滑塊 -

45 **

P - R1623-412-10,REXROTH/STAR滾珠滑塊 R1623-422-10,REXROTH/STAR滾珠滑塊 R1623-432-10 ,REXROTH/STAR滾珠滑塊

H R1623-493-10,REXROTH/STAR滾珠滑塊 R1623-413-10,REXROTH/STAR滾珠滑塊 R1623-423-10,REXROTH/STAR滾珠滑塊 -

N R1623-494-10 ,REXROTH/STAR滾珠滑塊R1623-414-1,REXROTH/STAR滾珠滑塊 R1623-424-10 ,REXROTH/STAR滾珠滑塊-

P - R1623-512-10,REXROTH/STAR滾珠滑塊R1623-522-10 ,REXROTH/STAR滾珠滑塊R1623-532-10 ,REXROTH/STAR滾珠滑塊

H R1623-593-10,REXROTH/STAR滾珠滑塊 R1623-513-10,REXROTH/STAR滾珠滑塊 R1623-523-10,REXROTH/STAR滾珠滑塊 -

N R1623-594-10 ,REXROTH/STAR滾珠滑塊R1623-514-10 ,REXROTH/STAR滾珠滑塊R1623-524-10,REXROTH/STAR滾珠滑塊 -

P - R1623-612-10 ,REXROTH/STAR滾珠滑塊R1623-622-10,REXROTH/STAR滾珠滑塊 R1623-632-10 ,REXROTH/STAR滾珠滑塊

H R1623-693-10 ,REXROTH/STAR滾珠滑塊R1623-613-10,REXROTH/STAR滾珠滑塊 R1623-623-10,REXROTH/STAR滾珠滑塊 -

N R1623-694-10 ,REXROTH/STAR滾珠滑塊R1623-614-10 ,REXROTH/STAR滾珠滑塊R1623-624-10,REXROTH/STAR滾珠滑塊 -

N R1623-194-10, 力士樂滾珠滑塊R1623-114-10 -力士樂滾珠滑塊 -

P - R1623-812-10 ,REXROTH/STAR滾珠滑塊R1623-822-10,REXROTH/STAR滾珠滑塊 R1623-832-10,REXROTH/STAR滾珠滑塊

H R1623-893-10 ,REXROTH/STAR滾珠滑塊R1623-813-10 ,REXROTH/STAR滾珠滑塊R1623-823-10,REXROTH/STAR滾珠滑塊 -

N R1623-894-10, REXROTH/STAR滾珠滑塊R1623-814-10,REXROTH/STAR滾珠滑塊 R1623-824-10 ,REXROTH/STAR滾珠滑塊-

P - R1623-212-10 ,REXROTH/STAR滾珠滑塊R1623-222-10,REXROTH/STAR滾珠滑塊 R1623-232-10,REXROTH/STAR滾珠滑塊

H R1623-293-10,REXROTH/STAR滾珠滑塊 R1623-213-10,REXROTH/STAR滾珠滑塊 R1623-223-10,REXROTH/STAR滾珠滑塊-

N R1623-294-10 ,REXROTH/STAR滾珠滑塊R1623-214-10,REXROTH/STAR滾珠滑塊 R1623-224-10 ,REXROTH/STAR滾珠滑塊-

P - R1623-712-10,REXROTH/STAR滾珠滑塊 R1623-722-10, REXROTH/STAR滾珠滑塊R1623-732-10 ,REXROTH/STAR滾珠滑塊

H R1623-793-10,REXROTH/STAR滾珠滑塊 R1623-713-10REXROTH/STAR滾珠滑塊 ,R1623-723-10 ,REXROTH/STAR滾珠滑塊-

N R1623-794-10,REXROTH/STAR滾珠滑塊 R1623-714-10 ,REXROTH/STAR滾珠滑塊R1623-724-10 ,REXROTH/STAR滾珠滑塊-

P - R1623-312-10,REXROTH/STAR滾珠滑塊 R1623-322-10,REXROTH/STAR滾珠滑塊 R1623-332-10,REXROTH/STAR滾珠滑塊

H R1623-393-10,REXROTH/STAR滾珠滑塊 R1623-313-10 ,REXROTH/STAR滾珠滑塊R1623-323-10,REXROTH/STAR滾珠滑塊 -

N R1623-394-10 ,REXROTH/STAR滾珠滑塊R1623-314-10,REXROTH/STAR滾珠滑塊 R1623-324-10,REXROTH/STAR滾珠滑塊
